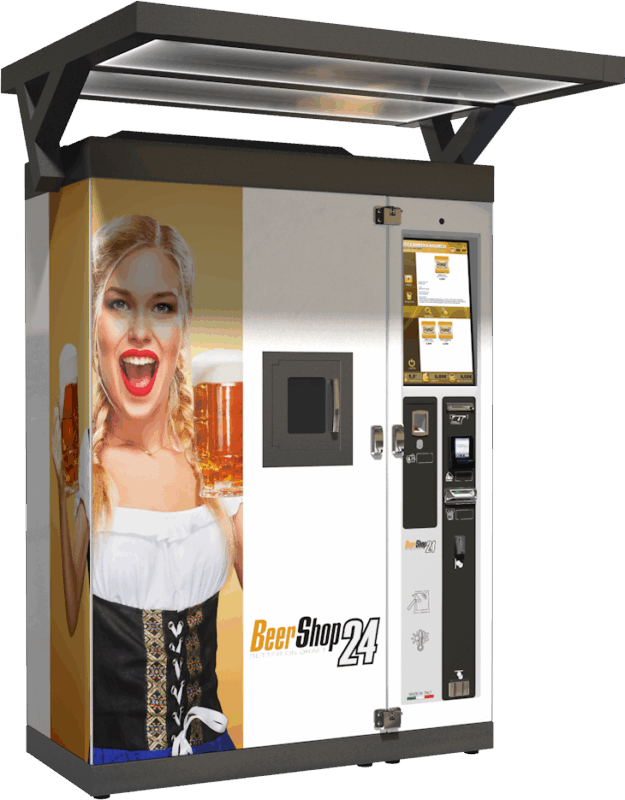

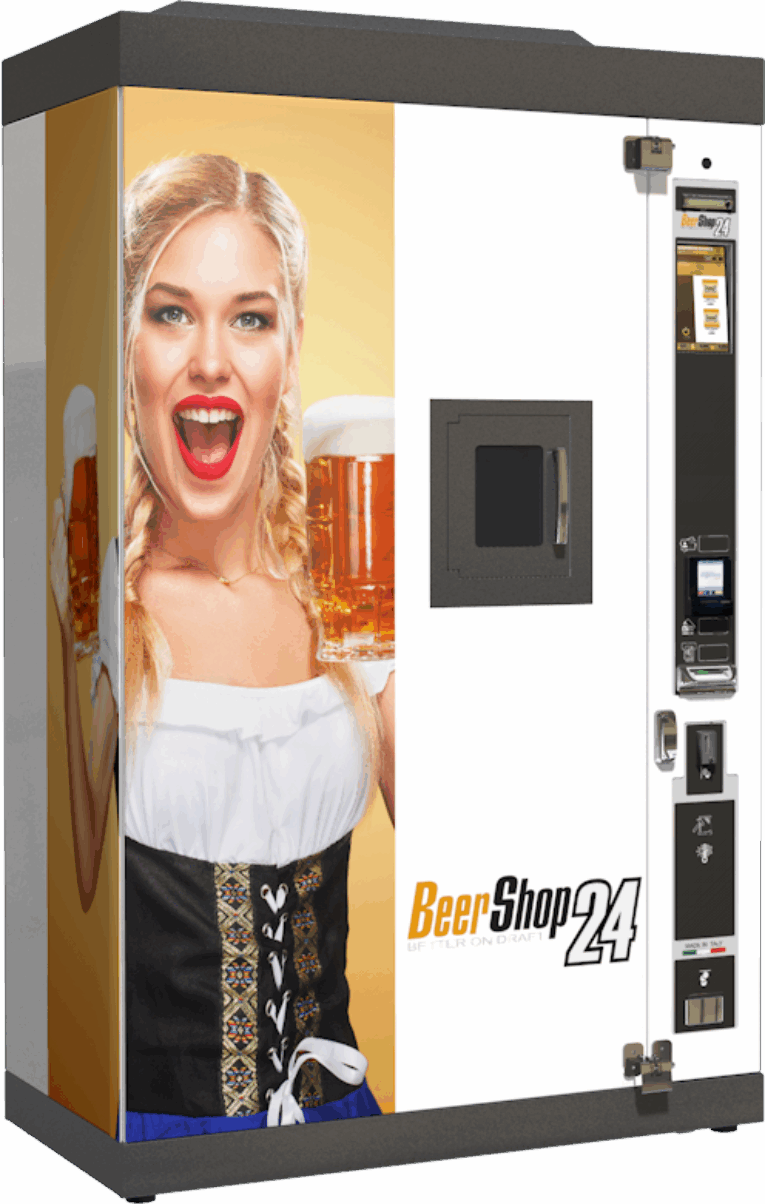

Vending machine Draught Beer
“Freshness and Flavor
consistently accessible”
“Why restrict enjoying draft beer to pubs or bars? Experience the freshness of draft beer with our innovative vending machine. At any time, you will always find a fresh and delicious beer available.
Here’s to quality and convenience!”
The Rationale for Utilization
-
Quality, Convenience, and Accessability
BeerShop24 maintains the quality and exceptional freshness of its beer products. The beer is maintained at an optimal temperature and safeguarded from exposure to air, thereby preserving its flavor and carbonation more effectively than traditional bottles or cans.
BeerShop24 offers fresh draft beer at any time, eliminating the necessity of visiting a bar or store and avoiding the inconvenience of waiting in line.
-
Discretion and User-Friendliness
The utilization of BeerShop24 is straightforward and highly convenient. The draft system is user-friendly and dispenses beer into a glass in a manner akin to that of a pub, efficiently and without the need for interpersonal interaction during the purchasing process.
-
Innovation and Entertainment
The utilization of BeerShop24 can provide a pleasurable and engaging experience. The contemporary interface and advanced technology enhance the purchasing process, rendering it more captivating and enjoyable, thereby introducing an element of innovation into one’s routine.
The Rationale for Utilization
Quality, Convenience, and Accessability
BeerShop24 maintains the quality and exceptional freshness of its beer products. The beer is maintained at an optimal temperature and safeguarded from exposure to air, thereby preserving its flavor and carbonation more effectively than traditional bottles or cans.
BeerShop24 offers fresh draft beer at any time, eliminating the necessity of visiting a bar or store and avoiding the inconvenience of waiting in line.
Discretion and User-Friendliness
The utilization of BeerShop24 is straightforward and highly convenient. The draft system is user-friendly and dispenses beer into a glass in a manner akin to that of a pub, efficiently and without the need for interpersonal interaction during the purchasing process.
Innovation and Entertainment
The utilization of BeerShop24 can provide a pleasurable and engaging experience. The contemporary interface and advanced technology enhance the purchasing process, rendering it more captivating and enjoyable, thereby introducing an element of innovation into one’s routine.
Why should it be installed?
-
Minimal Staff Intervention
BeerShop24 minimizes the requirement for dedicated personnel, as the machine autonomously oversees payment and dispensing operations.
-
Compliance and Safety
BeerShop24 implements measures to ensure that only individuals who meet the legal drinking age are permitted to purchase beer, thereby mitigating the risk of unlawful sales.
-
An Increase in Sales
BeerShop24 provides a convenient and efficient option for consumers, which may lead to an increase in sales volume.
-
Management and Data Analysis
The reporting system gathers data on consumption patterns and preferences, which is instrumental in optimizing the service offerings. Additionally, the messaging system facilitates alerts and enables remote coordination of operations.
Why should it be installed?
Minimal Staff Intervention
BeerShop24 minimizes the requirement for dedicated personnel, as the machine autonomously oversees payment and dispensing operations.
Compliance and Safety
BeerShop24 implements measures to ensure that only individuals who meet the legal drinking age are permitted to purchase beer, thereby mitigating the risk of unlawful sales.
An Increase in Sales
BeerShop24 provides a convenient and efficient option for consumers, which may lead to an increase in sales volume.
Management and Data Analysis
The reporting system gathers data on consumption patterns and preferences, which is instrumental in optimizing the service offerings. Additionally, the messaging system facilitates alerts and enables remote coordination of operations.
Where should it be placed?
-
Entertainment
Events such as festivals, concerts, and sporting competitions, where there is a significant demand for beer and age verification can be effectively implemented.
-
Shopping Centers and Food Courts
In a food court or gastronomic area, strategies are implemented to attract customers seeking quick drinking options.
-
Universities and Their Campuses
Proximity to university campuses, where the majority of students are of legal drinking age, may enhance the appeal of a BeerShop24 that offers high-quality beer.
-
Tourist Destinations
Locations commonly visited by tourists seeking convenience and a diverse selection of local or international beers
-
Existing Bars and Pubs
The implementation of BeerShop24 within a bar or pub setting is advantageous, as these environments already attract an adult audience and facilitate the integration of age verification measures.
-
Galleries or Co-Working Spaces
Areas commonly visited by professionals who may appreciate a beer after work or during breaks.
Where should it be placed?
Entertainment
Events such as festivals, concerts, and sporting competitions, where there is a significant demand for beer and age verification can be effectively implemented.
Shopping Centers and Food Courts
In a food court or gastronomic area, strategies are implemented to attract customers seeking quick drinking options.
Universities and Their Campuses
Proximity to university campuses, where the majority of students are of legal drinking age, may enhance the appeal of a BeerShop24 that offers high-quality beer.
Tourist Destinations
Locations commonly visited by tourists seeking convenience and a diverse selection of local or international beers
Existing Bars and Pubs
The implementation of BeerShop24 within a bar or pub setting is advantageous, as these environments already attract an adult audience and facilitate the integration of age verification measures.
Galleries or Co-Working Spaces
Areas commonly visited by professionals who may appreciate a beer after work or during breaks.
Main Features
NO PERSONNEL REQUIRED
AUTOMATIC DISPENSING OF GLASSES (0.4 l)
A MAXIMUM OF 3 BEVERAGES (a combination of different beers, wine, beer + non-alcoholic drink)
AGE VERIFICATION
CONTROLLED DISPENSING HOURS
INSTANT COOLING SYSTEM
PAYMENT OPTIONS: POINT OF SALE (POS) OR CASH
FINGERPRINT RECOGNITION
Mechanisms of Operation
-
Vending Machine
BeerShop24 functions as a vending machine, characterized as an autonomous and unattended device that facilitates electronic or cash transactions, dispenses products, and provides change. Its design is both elegant and robust, rendering it suitable for outdoor installation. Additionally, graphic customizations are available.
-
Draught System
BeerShop24 features a draught system that includes either two or three kegs, along with the appropriate dispensers, as illustrated in Figure 1:
[1] – A carbon dioxide (CO2) cylinder utilized for the dispensing of propulsion
[2] – A pressure regulation system categorized by beverage type
[3] – Beverage kegs (Classic or Key-Keg connection)
[4] – Instant cooler utilizing ice coils
[5] – Dispensers
BeerShop24 adheres to traditional practices in beer handling
-
Dispensing System
BeerShop24 incorporates a fully automated 0.4 l glass dispensing and filling system, as illustrated in Figure 2:
[6] – The rotating cup loader has the capacity to accommodate approximately 400 cups arranged in five rows.
[7] – Next Cup Discriminator
[8] – Cup in Position
Figure 3 illustrates the filling system:
[9] – Mobile Cart
[10] – Solenoid Valves
[11] – Filling Position
[12] – Cup Pickup Door
-
Dispensing Cycle
Following the dispensing request, BeerShop activates the cup discriminator [7] to position the next cup at location [8]. In the absence of a cup present in the discriminator, BeerShop24 engages the wheel [6] to initiate the arrangement of a new row of cups.
Upon placing the cup in the designated position, BeerShop24 activates the dispenser cart [9] and maneuvres it to position [11]. Subsequently, the corresponding solenoid valve [10] is opened to initiate the filling process. Upon completion, BeerShop24 closes the solenoid valve, retracts the cart, and unlocks the cup pickup door [12].
-
Filling Procedure
The filling process is conducted for a predetermined duration for each type of beverage. To enhance the quality of the filling, the dispensing nozzles are inclined, directing the flow towards the interior wall of the cup. Flow regulators are incorporated for each beverage to facilitate the selection of the most appropriate dispensing option. In the event of a designated period of inactivity between the dispensing of the same beverage, BeerShop executes a brief release of the beverage while the cart remains closed, allowing the liquid to be directed into an internal tank. This procedure is implemented to prevent the dispensing of excessive foam.
-
Cleaning, Replacement of Kegs, and Replenishment of Cups
BeerShop24 necessitates the same cleaning and keg replacement procedures that are commonly implemented in bars or pubs. The cleaning process involves connecting a sanitizing solution to the system and activating the solenoid valves in maintenance mode to facilitate the flow. The used liquids are collected in the internal tank, which must be emptied upon the completion of the cleaning process. Keg is conducted in a manner analogous to that in bars and pubs. Additionally, in BeerShop24, it is essential to refill the cup loaders. Following the maintenance procedures, the count of new servings (for each beverage) must be reset in BeerShop24 to enable the machine to send timely alerts via SMS when a refill is required.
Mechanisms of Operation
Vending Machine
BeerShop24 functions as a vending machine, characterized as an autonomous and unattended device that facilitates electronic or cash transactions, dispenses products, and provides change. Its design is both elegant and robust, rendering it suitable for outdoor installation. Additionally, graphic customizations are available.
Draught System
BeerShop24 features a draught system that includes either two or three kegs, along with the appropriate dispensers, as illustrated in Figure 1:
[1] – A carbon dioxide (CO2) cylinder utilized for the dispensing of propulsion
[2] – A pressure regulation system categorized by beverage type
[3] – Beverage kegs (Classic or Key-Keg connection)
[4] – Instant cooler utilizing ice coils
[5] – Dispensers
BeerShop24 adheres to traditional practices in beer handling
Dispensing System
BeerShop24 incorporates a fully automated 0.4 l glass dispensing and filling system, as illustrated in Figure 2:
[6] – The rotating cup loader has the capacity to accommodate approximately 400 cups arranged in five rows.
[7] – Next Cup Discriminator
[8] – Cup in Position
Figure 3 illustrates the filling system:
[9] – Mobile Cart
[10] – Solenoid Valves
[11] – Filling Position
[12] – Cup Pickup Door
Dispensing Cycle
Following the dispensing request, BeerShop activates the cup discriminator [7] to position the next cup at location [8]. In the absence of a cup present in the discriminator, BeerShop24 engages the wheel [6] to initiate the arrangement of a new row of cups.
Upon placing the cup in the designated position, BeerShop24 activates the dispenser cart [9] and maneuvres it to position [11]. Subsequently, the corresponding solenoid valve [10] is opened to initiate the filling process. Upon completion, BeerShop24 closes the solenoid valve, retracts the cart, and unlocks the cup pickup door [12].
Filling Procedure
The filling process is conducted for a predetermined duration for each type of beverage. To enhance the quality of the filling, the dispensing nozzles are inclined, directing the flow towards the interior wall of the cup. Flow regulators are incorporated for each beverage to facilitate the selection of the most appropriate dispensing option. In the event of a designated period of inactivity between the dispensing of the same beverage, BeerShop executes a brief release of the beverage while the cart remains closed, allowing the liquid to be directed into an internal tank. This procedure is implemented to prevent the dispensing of excessive foam.
Cleaning, Replacement of Kegs, and Replenishment of Cups
BeerShop24 necessitates the same cleaning and keg replacement procedures that are commonly implemented in bars or pubs. The cleaning process involves connecting a sanitizing solution to the system and activating the solenoid valves in maintenance mode to facilitate the flow. The used liquids are collected in the internal tank, which must be emptied upon the completion of the cleaning process. Keg is conducted in a manner analogous to that in bars and pubs. Additionally, in BeerShop24, it is essential to refill the cup loaders. Following the maintenance procedures, the count of new servings (for each beverage) must be reset in BeerShop24 to enable the machine to send timely alerts via SMS when a refill is required.
Software Overview
-
Vending
BeerShop24 represents an advanced iteration of vending machine technology, characterized as a SMART vending machine. Customer engagement is enhanced through the utilization of a high-brightness 9” touchscreen monitor. BeerShop24 is outfitted with a multimedia system that is capable of presenting information, videos, and advertisements pertaing to both beverages and sponsors.
-
Selection of Beer and Beverages
Customers have the option to select their preferred type of beer. As illustrated in Figure 4, they can choose between Non-Alcoholic Beer and Regular Beer. Upon selecting Non-Alcoholic Beer, users have the opportunity to review its characteristics or view the corresponding informational video. It is important to note that the ‘BUY’ option is active and readily accessible, as depicted in Figure 5. In the instance of selecting Regular Beer (refer to Figure 6), the indication [18+] is displayed, and the user is notified that age verification is necessary to complete the purchase, resulting in the ‘BUY’ option being disabled.
In the instance of selecting Regular Beer (refer to Figure 6), the indication [18+] is displayed, and the user is notified that age verification is necessary to complete the purchase, resulting in the ‘BUY’ option being disabled.
-
Age Verification
The age verification methods presented (see Figure 7) include ‘Document’ verification, the international system ‘YOTI’ (refer to Figure 8), and, contingent upon BeerShop24’s capability for video conferencing, the option of utilizing a ‘Remote Operator’.
-
Legal Age Verified
The status bar indicates that the age verification process has been successfully completed, and the ‘BUY’ option is now active and accessible.
-
Fingerprint
If equipped with a fingerprint scanner, BeerShop24 enables users to link their fingerprints (specifically, two fingers of their choosing) to the impersonal data required for age verification. This functionality streamlines future access to the machine, eliminating the need for additional verification checks (see Figure 9).
-
Hours and Consumption Limitations
On BeerShop24, users have the capability to configure the hours during which age verification is required for the dispensing of beverages. Additionally, a personal consumption limit can be established to prevent the same identification document from being utilized to acquire excessive servings or to benefit third parties.
Software Overview
Vending
BeerShop24 represents an advanced iteration of vending machine technology, characterized as a SMART vending machine. Customer engagement is enhanced through the utilization of a high-brightness 9” touchscreen monitor. BeerShop24 is outfitted with a multimedia system that is capable of presenting information, videos, and advertisements pertaing to both beverages and sponsors.
Selection of Beer and Beverages
Customers have the option to select their preferred type of beer. As illustrated in Figure 4, they can choose between Non-Alcoholic Beer and Regular Beer. Upon selecting Non-Alcoholic Beer, users have the opportunity to review its characteristics or view the corresponding informational video. It is important to note that the ‘BUY’ option is active and readily accessible, as depicted in Figure 5. In the instance of selecting Regular Beer (refer to Figure 6), the indication [18+] is displayed, and the user is notified that age verification is necessary to complete the purchase, resulting in the ‘BUY’ option being disabled.
In the instance of selecting Regular Beer (refer to Figure 6), the indication [18+] is displayed, and the user is notified that age verification is necessary to complete the purchase, resulting in the ‘BUY’ option being disabled.
Age Verification
The age verification methods presented (see Figure 7) include ‘Document’ verification, the international system ‘YOTI’ (refer to Figure 8), and, contingent upon BeerShop24’s capability for video conferencing, the option of utilizing a ‘Remote Operator’.
Legal Age Verified
The status bar indicates that the age verification process has been successfully completed, and the ‘BUY’ option is now active and accessible.
Fingerprint
If equipped with a fingerprint scanner, BeerShop24 enables users to link their fingerprints (specifically, two fingers of their choosing) to the impersonal data required for age verification. This functionality streamlines future access to the machine, eliminating the need for additional verification checks (see Figure 9).
Hours and Consumption Limitations
On BeerShop24, users have the capability to configure the hours during which age verification is required for the dispensing of beverages. Additionally, a personal consumption limit can be established to prevent the same identification document from being utilized to acquire excessive servings or to benefit third parties.
